HVAC Drafting Services
Professional HVAC Drafting & MEP Design Support
Engineer7 provides HVAC Drafting Services for businesses that need accurate, efficient and dependable technical support. Our HVAC design drafting workflows combine experienced professionals with modern engineering tools to deliver solutions tailored to specific project requirements. We support projects requiring reliable digital deliverables, detailed documentation and coordinated workflows. Depending on the project scope, our capabilities can include HVAC CAD services, MEP drafting, and ductwork drawings to help improve accuracy and streamline project execution.
Why Professional HVAC Drafting Is Essential
Poorly drafted HVAC drawings lead to installation errors, equipment conflicts, code violations, failed inspections, and costly rework on the job site. Professional HVAC drafting ensures:
- ✅ Accurate duct sizing for correct airflow and system performance
- ✅ Clash-free coordination with structural and other MEP systems
- ✅ Code-compliant drawings meeting ASHRAE, SMACNA & local standards
- ✅ Clear installation guidance that reduces errors on the job site
- ✅ Faster permit approvals with professionally prepared submissions
- ✅ Accurate material takeoffs directly from the drawings
- ✅ Reduced installation time through precise, unambiguous documentation
- ✅ Cost savings by identifying and resolving conflicts before installation
From early planning through final delivery, our HVAC Drafting Services approach focuses on quality control, clear communication and scalable resources. We support architects, engineers, contractors, manufacturers and businesses across diverse industries.
HVAC Duct Layout & Design Drawings
Our core HVAC drafting service covers the complete design and detailed drafting of duct distribution systems from main supply and return air trunks through to branch ducts, diffusers, grilles, and registers precisely sized and routed for optimal airflow performance and efficient installation.
Includes:
- Supply Air Duct Layout Plans
- Return Air Duct Layout Plans
- Exhaust Air Duct Layout Plans
- Fresh Air & Outside Air Duct Design
- Main Trunk & Branch Duct Sizing
- Duct Transition & Offset Design
- Diffuser, Grille & Register Layout
- Duct Riser & Shaft Design
- Duct Routing Coordination
- Duct Layout Plan Production

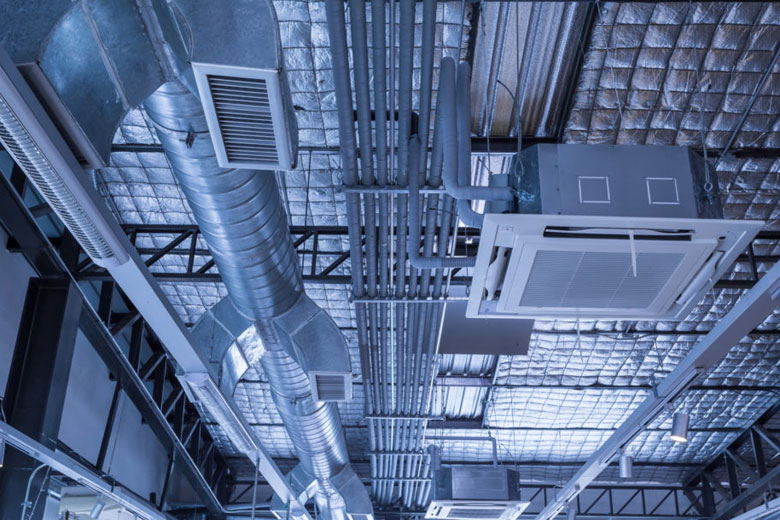

AutoCAD MEP HVAC Drawings
Our AutoCAD MEP specialists create intelligent, fully annotated HVAC drawings using Autodesk’s AutoCAD Civil 3D Design platform — producing coordinated mechanical drawings that automatically track duct sizes, flow rates, and system connectivity for accurate, efficient HVAC documentation.
Includes:
- AutoCAD MEP Duct System Modeling
- Automated Duct Sizing & Annotation
- AutoCAD MEP Equipment Placement
- HVAC System Schematic Drawing
- AutoCAD MEP Plan View Drawings
- AutoCAD MEP Elevation Drawings
- AutoCAD MEP Section Drawings
- AutoCAD MEP Schedule Generation
HVAC Shop Drawings
Our HVAC shop drawing service produces detailed, fabrication-ready drawings for sheet metal ductwork fabricators and mechanical contractors — providing all the dimensional information, fitting geometry, and connection details needed for accurate duct fabrication and efficient field installation.
Includes:
- Duct Fabrication Shop Drawings
- Custom Fitting & Transition Drawings
- Duct Spool & Section Drawings
- Hanger & Support Location Drawings
- Penetration & Sleeve Drawings
- Access Panel Location Plans
- 3D architectural walkthrough
- Duct Connection Detail Drawings
- Flexible Duct Connection Details
Our Simple 6-Step HVAC Drafting Process
Step 1 — 📋 Share Your Project Requirements
Send us your architectural floor plans, mechanical specifications, equipment schedules, design basis documents, and any existing HVAC drawings or red-line markups. The more information you share, the faster and more accurately we can produce your drawings.
Step 2 — 💬 Free Consultation & Quote
Our HVAC drafting specialists review your project requirements and provide a detailed free quote covering the complete scope of work, drawing deliverables, applicable standards, and project timeline — with no hidden costs or surprises.
Step 3 — 🖥️ HVAC CAD Setup & Base Plan Preparation
We set up your project in AutoCAD MEP or your preferred CAD platform — importing base architectural plans, establishing drawing standards, and preparing the project framework before drafting begins.
Step 4 — ✏️ HVAC Drafting & Design Documentation
Our HVAC drafting team produces all required drawings — duct layouts, equipment plans, schedules, schematics, and details — working systematically through the complete scope while maintaining close communication with your engineering team throughout.
Step 5 — 🔍 Quality Control & Drawing Review
Every drawing goes through a rigorous multi-level quality control review — checking duct sizing, equipment placement, code compliance, drawing accuracy, and completeness before any drawings are issued for review.
Step 6 — 📦 Delivery & Revision Support
We deliver your complete HVAC drawing set in PDF and DWG formats. Any review comments or revision requests are addressed promptly — and we continue to support you through permit submission and construction as required.
HVAC Standards & Codes We Work To
Our HVAC drafting services are delivered in full compliance with all major HVAC industry standards and codes:
- 🌬️ ASHRAE Standards — HVAC Design & Energy Standards
- 📐 SMACNA Guidelines — Sheet Metal & Air Conditioning
- 🔥 NFPA 90A/90B — Air Conditioning & Ventilation Systems
- 🏗️ IMC — International Mechanical Code
- 🏠 IRC — International Residential Code
- ⚡ IECC — International Energy Conservation Code
- 🌡️ ACCA Manual D — Residential Duct Design
- 💨 ACCA Manual J — Residential Load Calculation
- 🔧 ASHRAE 62.1 — Ventilation for Acceptable Indoor Air Quality
- 🌿 LEED MEP — Green Building Mechanical Requirements
What You Get With Every HVAC Drafting Project
- 📐 Complete HVAC Drawing Set (PDF & DWG formats)
- 🌬️ Duct Layout Plans for all floors and areas
- 📋 Equipment Schedules — AHU, FCU, diffusers & more
- 📊 HVAC Riser Diagrams & Schematics
- 🔍 Coordination Drawings — clash-free & fully checked
- 🏭 Shop Drawings for duct fabrication
- 📁 Multiple File Formats — DWG, DXF, PDF, RVT
- 🔄 Unlimited Revisions within agreed project scope
- 📝 Complete Project Documentation Package
- 📞 Permit Review & Agency Comment Support
